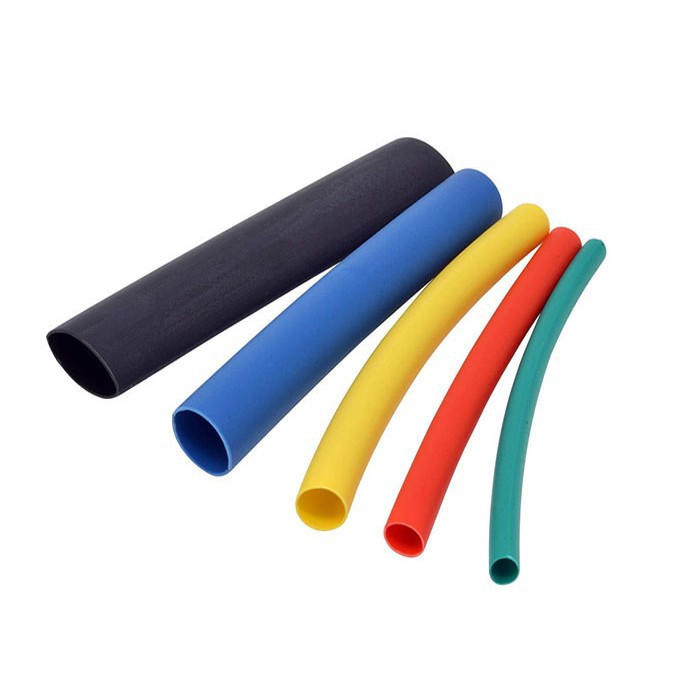

MODEL:TY-HFT-300 series P2 Halogen-free Red-Phosphorus-free flame retardant heat shrink tube

Pressure resistant heat shrink tube functional uses: wear-resistant, anti-leakage, multi-strand wire harness sealing waterproof, anti-corrosion protection, anti-UV. Pressure resistant heat shrink tube the heat shrink tube is a kind of special polyolefin material heat shrink sleeve. The outer layer is made of high-quality and soft cross-linked polyolefin material and the inner layer of hot melt adhesive. The outer layer has the characteristics of insulation, corrosion prevention and wear resistance Pressure resistant heat shrink tube and the inner layer has the advantages of low melting point, waterproof sealing and high adhesion.

Pressure resistant heat shrink tube is widely used in automobile, mainly for protection, insulation and fixed wiring harness and parts, the product has the characteristics of halogen-free, environmental protection, flame retardant, soft, insulation, low shrinkage and so on. It is mainly used for insulation, wiring binding, marking and identification, mechanical protection of components, terminals and connectors.

No.	Specification	Sides before shrink(mm)		Fully Recoverd Dimensions(mm)
No.	Specification	Inner diameter(ID)	Wall thickness(T)	Inner diameter(id)	Wall thickness(t)
P20062X01C1	Φ0.6CB	0.90±0.2	0.13±0.05	≤0.40	0.20±0.10
P20082X01C1	Φ0.8CB	1.10±0.2	0.13±0.05	≤0.45	0.20±0.10
P20102X01C1	Φ1.0CB	1.50±0.2	0.13±0.05	≤0.65	0.20±0.10
P20152X01C1	Φ1.5CB	2.00±0.2	0.13±0.05	≤0.85	0.20±0.10
P20202X01C1	Φ2.0CB	2.50±0.2	0.13±0.05	≤1.00	0.22±0.10
P20252X01C1	Φ2.5CB	3.00±0.2	0.13±0.05	≤1.25	0.25±0.10
P20302X01C1	Φ3.0CB	3.50±0.2	0.13±0.05	≤1.50	0.28±0.10
P20352X01C1	Φ3.5CB	4.00±0.2	0.13±0.05	≤1.75	0.28±0.10
P20402X01C1	Φ4.0CB	4.50±0.2	0.15±0.05	≤2.00	0.30±0.10
P20452X01C1	Φ4.5CB	5.00±0.2	0.15±0.05	≤2.25	0.30±0.10
P20502X01C1	Φ5.0CB	5.50±0.2	0.15±0.05	≤2.50	0.32±0.10
P20602X01C1	Φ6.0CB	6.50±0.2	0.15±0.05	≤3.0	0.32±0.10
P20702X01C1	Φ7.0CB	7.50±0.3	0.15±0.05	≤3.5	0.32±0.10
P20802X01C1	Φ8.0CB	8.50±0.3	0.15±0.05	≤4.0	0.32±0.10
P20902X01C1	Φ9.0CB	9.50±0.3	0.15±0.05	≤4.5	0.35±0.10
P21002X01C1	Φ10CB	10.5±0.3	0.15±0.05	≤5.0	0.35±0.10
P21102X01C1	Φ11CB	11.5±0.3	0.18±0.05	≤5.5	0.40±0.10
P21202X01C1	Φ12CB	12.5±0.3	0.20±0.05	≤6.0	0.40±0.10
P21302X01C1	Φ13CB	13.5±0.3	0.20±0.05	≤6.5	0.40±0.10
P21402X01C1	Φ14CB	14.5±0.3	0.20±0.05	≤7.0	0.40±0.10
P21502X01C1	Φ15CB	15.5±0.4	0.20±0.05	≤7.5	0.40±0.10
P21602X01C1	Φ16CB	16.5±0.4	0.22±0.05	≤8.0	0.40±0.10
P21702X01C1	Φ17CB	17.5±0.4	0.22±0.05	≤8.5	0.40±0.10
P21802X01C1	Φ18CB	18.5±0.4	0.22±0.05	≤9.0	0.42±0.10
P22002X01C1	Φ20CB	20.5±0.5	0.25±0.05	≤10.0	0.45±0.10
P22202X01C1	Φ22CB	22.5±0.5	0.25±0.05	≤11.0	0.45±0.10
P22502X01C1	Φ25CB	25.5±0.5	0.25±0.05	≤12.5	0.45±0.10
