Other Categories Tube
Wujiang Tuoyan Co., Ltd
High Temperature Fiberglass Tube，PVC Tube，Silica Gel Tube，Teflon Tube，Glass Fiber Silicone Casing，Braided Cable Sleeve，Self-winding Weaving Braided Mesh Tube，Isotube, customizable, corrosion-resistant, high-temperature resistant, wear-resistant, meeting the requirements of corrosion resistance, high-temperature resistance and wear-resistantIt complies with RoHS, REACH and other standards, and has fire resistance, wear resistance and flexibility. It is mostly used for special-shaped pipes。
The specifications and colors can be customized. Packaging and cutting are carried out as required. The product quality is good and it is widely used in automobiles Medical care, communication, electronics and electrical engineering, household appliances and other industries.
PVC tube
PVC hose (polyvinyl chloride hose) is widely used in many fields because of its flexibility, corrosion resistance, low cost characteristics.
Braided network management
Braided network because of its unique structure (usually woven from fiber, wire or synthetic materials) and performance advantages (such as flexibility, wear resistance, high temperature resistance, protection, etc.)
PTFE tube
Teflon sleeve (PTFE sleeve) because of its excellent high temperature resistance, corrosion resistance, insulation and low friction coefficient and other characteristics
More Details Can Be Found On The Product Details Page, Or Contact A Developer To Send A Solution For Your Product
-
![Built-in Mortar Cold Shrink Tubing]()
Built-in Mortar Cold Shrink TubingFactory direct sales, customizable, wide range of high and low temperatures (such as -60 to 200℃), excellent hydrophobicity and insulation, large shrinkage ratio, high mechanical strength,...read more -
![Cold Shrink Tubing]()
Cold Shrink TubingCold shrink tubing, high-magnification silicone rubber cold shrink tubing is made of specially formulated silicone rubber raw materials, featuring a large shrinkage ratio, excellent physical and...read more -
![Copper Braided Tape]()
Copper Braided TapeMaterial: Mainly woven from oxygen-free copper wire (red copper), tin-plated copper wire or brass wire Specifications: Common cross-sectional areas include 4 square meters, 6 square meters, 10...read more -
![High Temperature Fiberglass Tube]()
High Temperature Fiberglass TubeMaterial: extruded silicone rubber and fiber glass braidread more
Withstand Voltage: 2500V-10000V
Operation temperature: -60'C~+200'C -

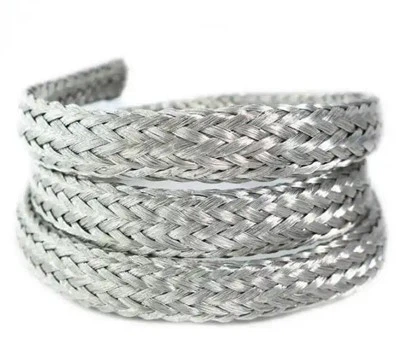

![Tin-plated Copper Braided Mesh Pipe]()
Tin-plated Copper Braided Mesh PipeTin-plated copper woven mesh is made of tin-plated copper monofilament woven /PET/ stainless steel and other materials. The network pipe is both stretchable, wear-resistant and conductive. It can...read more -
![PVC Tube]()
-
![Silica Gel Tube]()
Silica Gel TubeGeneral usage of Silica gel tube for medical equipments, home appliances,aircrafts, military equipments andautomobiles,electronic components, transformers, motors, etc.read more -
![Teflon Tube]()
Teflon TubeHigh temperature resistance Teflon tube is used in wide range of chemicals instruments, electric heating and mechanical industries.read more -
![Glass Fiber Silicone Casing]()
Glass Fiber Silicone CasingMaterial: extruded silicone rubber and fiber glass braidread more
Withstand Voltage: 10000V
Operation temperature of glass fiber silicone casing: -60'C~+200`C -
![Braided Cable Sleeve]()
Braided Cable SleeveAntifriction braided cable sleevecan effectively prevent damage to the wire surface cuts, effectively ensuring the product is suitable for safety.read more -
![Self-winding Weaving Braided Mesh Tube]()
Self-winding Weaving Braided Mesh TubeMODEL: TY-SCS Self-winding weaving Braided mesh tuberead more
Material: Polyester
Operating temperature of self-winding weaving braided mesh tube: -50℃C-+150C
We offer other categories Tube
High Temperature Fiberglass Tube
PVC Tube
Silica Gel Tube
Teflon Tube
Glass Fiber Silicone Casing
Braided Cable Sleeve
Self-winding Weaving Braided Mesh Tube
High Temperature Fiberglass Tube
High Temperature Fiberglass Tube is made by weaving glass fiber into a tube shape, extruding a layer of silicone rubber on the outer layer of the casing, and then curing it by heating. It has high dielectric strength, good flexibility, heat aging resistance, flame retardancy, and a temperature resistance level of 200°C. Silicone rubber fiberglass tubes are widely used for high-voltage insulation protection of electrical appliances with high heat generation.
Key Features of High Temperature Fiberglass Tube
Higher insulation
Our material provides superior insulating properties, ensuring the safety and efficiency of electrical equipment.
Wear resistance
With its robust construction, our insulation material offers exceptional resistance to wear and tear, extending the lifespan of your equipment.
Flame retardant and self-extinguishing:
Safety is our top priority. Our product is designed to resist flames and self-extinguish, minimizing the risk of fire accidents.
Flexibility
Our insulation material is highly flexible, allowing for easy installation and fitting in various applications.
Applications of High-Temperature Fiberglass Tube
H-class motors: Our insulation material provides superior heat-resistant protection for H-class motors, ensuring their optimal performance.
Transformers: Protect your transformers from extreme temperatures with our reliable insulation material.
Household appliances: Enhance the safety and efficiency of your household appliances with our insulation material.
Special lighting: Our product is suitable for special lighting applications, providing insulation and protection.
Electro-heating equipment: Ensure the insulation and safety of your electro-heating equipment with our high-quality material.
Electrical instruments: Our insulation material is ideal for electrical instruments, offering reliable protection and insulation.
Vehicles: Use our insulation material to enhance heat-resistant insulation in your vehicles, ensuring their longevity and performance.
PRODUCT SPECIFICATIONS
|
Items |
Technical Parameters |
Reference Standard |
|
Appearance |
No glue leakage, cracking, etc. |
GB/T 7113.1-2014 |
|
Coating hydrolysis |
No coating displacement, adhesion, etc. |
GB/T 7113.2 |
|
Cold bending test |
-40ºC,4h,No cracks, coating peeling and delamination |
IEC60684 |
|
Temperature |
-40ºC~200ºC |
UL1441 |
|
Flame retardant rating |
HB |
UL94 |
|
Breakdown voltage |
Reference standard |
GB/T 1408-2016 |
|
Heat Resistance |
250ºC±5, 24h, No droplets, no flow marks, no cracking |
JB/T 7093 2015 |
|
I.D.(mm) |
Wall thickness(mm) |
Package |
||||
|
Size |
Tolerance |
1500V |
2500V |
4000V |
7000V |
M/Roll |
|
Φ2.0 |
-0.10~0.25 |
0.35±0.1 |
0.40±0.1 |
0.45±0.1 |
0.5±0.1 |
100 |
|
Φ2.5 |
-0.10~0.25 |
0.35±0.1 |
0.40±0.1 |
0.45±0.1 |
0.5±0.1 |
100 |
|
Φ3.0 |
-0.10~0.25 |
0.35±0.1 |
0.40±0.1 |
0.45±0.1 |
0.5±0.1 |
100 |
|
Φ3.5 |
-0.10~0.35 |
0.4±0.1 |
0.45±0.1 |
0.50±0.1 |
0.55±0.1 |
100 |
|
Φ4.0 |
-0.10~0.35 |
0.4±0.1 |
0.45±0.1 |
0.50±0.1 |
0.55±0.1 |
100 |
|
Φ4.5 |
-0.10~0.35 |
0.4±0.1 |
0.45±0.1 |
0.50±0.1 |
0.55±0.1 |
100 |
|
Φ5.0 |
-0.10~0.35 |
0.4±0.1 |
0.45±0.1 |
0.50±0.1 |
0.55±0.1 |
100 |
|
Φ5.5 |
-0.10~0.40 |
0.45±0.1 |
0.50±0.1 |
0.55±0.1 |
0.60±0.1 |
100 |
|
Φ6.0 |
-0.10~0.40 |
0.45±0.1 |
0.50±0.1 |
0.55±0.1 |
0.60±0.1 |
100 |
|
Φ7.0 |
-0.10~0.50 |
0.45±0.1 |
0.50±0.1 |
0.55±0.1 |
0.60±0.1 |
100 |
|
Φ8.0 |
-0.10~0.50 |
0.45±0.1 |
0.50±0.1 |
0.55±0.1 |
0.65±0.1 |
50 |
|
Φ9.0 |
-0.10~0.50 |
0.45±0.1 |
0.50±0.1 |
0.55±0.1 |
0.65±0.1 |
50 |
|
Φ10.0 |
-0.20~0.70 |
0.50±0.15 |
0.55±0.15 |
0.65±0.15 |
0.7±0.15 |
50 |
|
Φ11.0 |
-0.20~0.70 |
0.50±0.15 |
0.55±0.15 |
0.65±0.15 |
0.7±0.15 |
50 |
|
Φ12.0 |
-0.20~0.70 |
0.50±0.15 |
0.55±0.15 |
0.65±0.15 |
0.7±0.15 |
50 |
|
Φ13.0 |
-0.30~0.80 |
0.55±0.15 |
0.60±0.15 |
0.70±0.15 |
0.75±0.15 |
50 |
|
Φ14.0 |
-0.30~0.80 |
0.55±0.15 |
0.60±0.15 |
0.70±0.15 |
0.75±0.15 |
50 |
|
Φ15.0 |
-0.30~0.80 |
0.55±0.15 |
0.60±0.15 |
0.70±0.15 |
0.75±0.15 |
50 |
Parameters of Silica Gel Tube
| Brand Name | Silicone Rubber Tube | |
| Material | 100% silicone | |
| color | Transparent, white and other colors | |
| Place of Origin | china | |
| Working Temperature | - 60°C to +260°C | |
| Features | Can bear High temperature and High Pressure | |
| Size | As your requirement | |
| Application | Water dispenser,Fish tank ,Medical equipment, Coffee machine, Food and Beverage, Air and Gas lines, Chemical lines, Laboratory and | |
| research, Protective jacketing, Water and Fluid lines... | ||
Features of Silica Gel Tube
Silica gel tube products come with various features. Some of them include:
Moisture Absorption
The primary feature of silica gel tube products is their ability to absorb moisture. They keep products dry by absorbing humidity in the air, which helps prevent spoilage, rust, and deterioration. This makes them indispensable for packaging, storage, and shipping.
Porous Structure
Silica gel tubes are typically fabricated with a highly porous structure, which increases their surface area significantly. This allows them to absorb large amounts of moisture. The porosity ensures that they are efficient and effective, as they allow rapid moisture uptake.
Reusability and Reactivation
In addition to moisture absorption, most silica gel tubes are reusable. They can typically be reactivated by heating, which displaces the moisture from the gel, allowing for multiple uses. This feature is both economically beneficial and promotes sustainability.
Non-Toxic and Safe
Silica gel is generally non-toxic and chemically inert, meaning it does not pose health hazards when used for its intended purposes, such as with food products or pharmaceuticals. This makes it a safe alternative for moisture control.
Structure of Braided Cable Sleeve
1.Braided from environmentally friendly polyester monofilaments (PET, PA6, PA66, PPS).
2.It possesses good flexibility, fire resistance, abrasion resistance, and thermal insulation properties.
3.The sleeving has a smooth surface, bright color, and various patterns.
Technical Da'ta
| Property | Specification Requirement | Test Method | Typical Value |
| Tensile strength (Room temp.) | Min. 10.4Mpa | UL224 | 12Mpa |
| Elongation at break (Room temp.) | Min. 200% | UL224 | 400% |
| Tensile strength after aging (158ºC 168hrs) | Min. 7.3Mpa | UL224 | 10.4Mpa |
| Elongation after aging (158ºC 168hrs) | Min. 100% | UL224 | 300% |
| Voltage withstand (Un-aged) | Withstand 2.5kV for 1 minute and breakdown | UL224 | Pass |
| Voltage withstand (Aged) | Withstand at least half of un-aged breakdown voltage for 1 minute and breakdown |
UL224 | Pass |
| Corrosion (158ºC 168hrs) | No corrosion | UL224 | No sign of deg. |
| Longitudinal shrinkage | ≤10% | UL224 | ≤5% |
| Low-temperature flexibility (-55ºC 4hrs) | No cracking | UL224 | Pass |
Features of Braided Cable Sleeve:
Flame-retardant
Easy, cost- and labor-effective installation
More flexible than split convoluted or spiral wrap
Cuts easily with a hot knife or scissors
Cut and abrasion resistant
25% edge overlap
Chemically inert
ROHS compliant
UV resistant
Cost-effective wrap-around solution
Retains shape and rigidity throughout the operating temperature range (-40°C to 125°C)
