| MODEL |

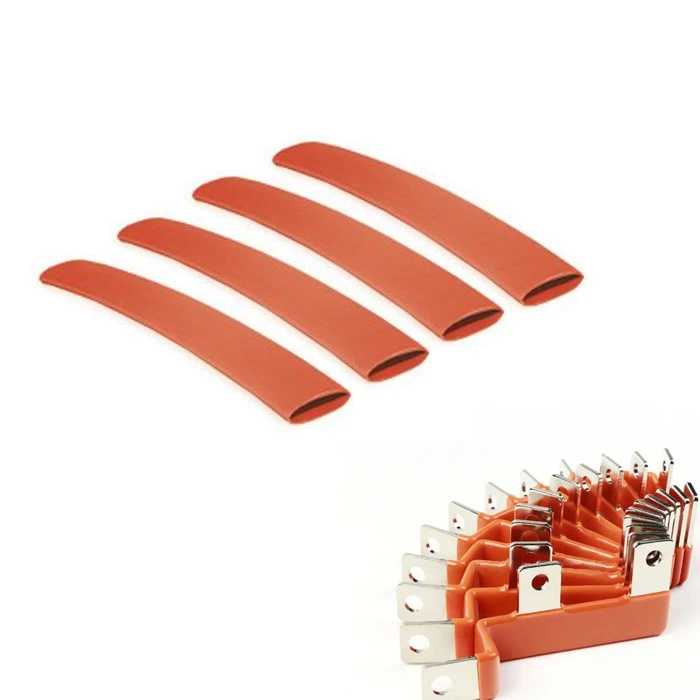

TY-EV New energy heat shrinkable tube Orange heat shrink tubing |
| Orange heat shrink tube Material | radiation crosslinking modified polyolefin materialShrinkage ratio |
| Feature | 1.Orange heat shrink tube Good softness 2.Orange heat shrink tube The product meets the requirements of "RoHS2.0' environmental protection standards: 3.Meet GB/T2408-2008 horizontal HB level and vertical V0 level |
| 125℃ 0.3 wall thickness Product specifications | |||||
|
No. |
Specification |
Sides before shrink (mm) |
Fully Recoverd Dimensions (mm) |
||
|
Inner diameter(ID) |
Wall thickness(T) |
Inner diameter(id) |
Wall thickness(t) |
||
|
EV1200302X08B0 |
Φ12 |
12.5±0.4 |
0.3±0.1 |
≤6.0 |
0.6±0.2 |
|
EV1400302X08B0 |
Φ14 |
14.5±0.4 |
0.3±0.1 |
≤7.0 |
0.6±0.2 |
|
EV1500302X08B0 |
Φ15 |
15.5±0.4 |
0.3±0.1 |
≤7.5 |
0.6±0.2 |
|
EV1600302X08B0 |
Φ16 |
16.5±0.4 |
0.3±0.1 |
≤8.0 |
0.6±0.2 |
|
EV1800302X08B0 |
Φ18 |
19.0±0.5 |
0.3±0.1 |
≤9.0 |
0.6±0.2 |
|
EV2000302X08B0 |
Φ20 |
21.5±1.0 |
0.3±0.1 |
≤10.0 |
0.6±0.2 |
|
EV2200302X08B0 |
Φ22 |
23.5±1.0 |
0.3±0.1 |
≤11.0 |
0.6±0.2 |
|
EV2500302X08B0 |
Φ25 |
26.0±1.0 |
0.3±0.1 |
≤12.5 |
0.6±0.2 |
|
EV2800302X08B0 |
Φ28 |
29.0±1.0 |
0.3±0.1 |
≤14.0 |
0.6±0.2 |
|
EV3000302X08B0 |
Φ30 |
31.0±1.5 |
0.3±0.1 |
≤15.0 |
0.6±0.2 |
|
EV3500302X08B0 |
Φ35 |
36.0±1.5 |
0.3±0.1 |
≤17.5 |
0.6±0.2 |
|
EV4000302X08B0 |
Φ40 |
41.5±1.5 |
0.3±0.1 |
≤20.0 |
0.6±0.2 |
|
EV4500302X08B0 |
Φ45 |
46.0±1.5 |
0.3±0.1 |
≤22.5 |
0.6±0.2 |
|
EV5000302X08B0 |
Φ50 |
51.0±1.5 |
0.3±0.1 |
≤25.0 |
0.6±0.2 |
| 125℃ 0.45 wall thickness Product specifications | |||||
|
No. |
Specification |
Sides before shrink(mm) |
Fully Recoverd Dimensions(mm) |
||
|
Inner diameter(ID) |
Wall thickness(T) |
Inner diameter(id) |
Wall thickness(t) |
||
|
EV2000452X08B0 |
Φ20 |
21.0±1.0 |
0.45±0.12 |
≤6.7 |
1.5±0.25 |
|
EV2500452X08B0 |
Φ25 |
26.0±1.0 |
0.45±0.12 |
≤8.4 |
1.5±0.25 |
|
EV2800452X08B0 |
Φ28 |
29.0±1.0 |
0.45±0.12 |
≤9.4 |
1.5±0.25 |
|
EV3000452X08B0 |
Φ30 |
31.0±1.5 |
0.45±0.12 |
≤10.0 |
1.5±0.25 |
|
EV3500452X08B0 |
Φ35 |
36.0±1.5 |
0.45±0.12 |
≤11.7 |
1.5±0.25 |
|
EV4000452X08B0 |
Φ40 |
41.0±1.5 |
0.45±0.12 |
≤13.4 |
1.5±0.25 |
|
EV4500452X08B0 |
Φ45 |
46.0±1.5 |
0.45±0.12 |
≤15.0 |
1.5±0.25 |
|
EV5000452X08B0 |
Φ50 |
51.0±1.5 |
0.45±0.12 |
≤16.7 |
1.5±0.25 |
| 125℃ 0.5 wall thickness Product specifications | |||||
|
No. |
Specification |
Sides before shrink(mm) |
Fully Recoverd Dimensions(mm) |
||
|
Inner diameter(ID) |
Wall thickness(T) |
Inner diameter(id) |
Wall thickness(t) |
||
|
EV1200502X08B0 |
Φ12 |
12.5±0.4 |
0.5±0.13 |
≤6.0 |
1.0±0.25 |
|
EV1400502X08B0 |
Φ14 |
14.5±0.4 |
0.5±0.13 |
≤7.0 |
1.0±0.25 |
|
EV1500502X08B0 |
Φ15 |
15.5±0.4 |
0.5±0.13 |
≤7.5 |
1.0±0.25 |
|
EV1600502X08B0 |
Φ16 |
16.5±0.4 |
0.5±0.13 |
≤8.0 |
1.0±0.25 |
|
EV1800502X08B0 |
Φ18 |
19.0±0.5 |
0.5±0.13 |
≤9.0 |
1.0±0.25 |
|
EV2000502X08B0 |
Φ20 |
21.5±1.0 |
0.5±0.13 |
≤10.0 |
1.0±0.25 |
|
EV2200502X08B0 |
Φ22 |
23.5±1.0 |
0.5±0.13 |
≤11.0 |
1.0±0.25 |
|
EV2500502X08B0 |
Φ25 |
26.0±1.0 |
0.5±0.13 |
≤12.5 |
1.0±0.25 |
|
EV2800502X08B0 |
Φ28 |
29.0±1.0 |
0.5±0.13 |
≤14.5 |
1.0±0.25 |
|
EV3000502X08B0 |
Φ30 |
31.0±1.5 |
0.5±0.13 |
≤15.0 |
1.0±0.25 |
|
EV3500502X08B0 |
Φ35 |
36.0±1.5 |
0.5±0.13 |
≤17.5 |
1.0±0.25 |
|
EV4000502X08B0 |
Φ40 |
41.0±1.5 |
0.5±0.13 |
≤20.0 |
1.0±0.25 |
|
EV4500502X08B0 |
Φ45 |
46.5±1.5 |
0.5±0.13 |
≤22.5 |
1.0±0.25 |
|
EV5000502X08B0 |
Φ50 |
51.0±1.5 |
0.5±0.13 |
≤25.0 |
1.0±0.25 |
| 125℃ 0.7 wall thickness Product specifications | |||||
|
No. |
Specification |
Sides before shrink(mm) |
Fully Recoverd Dimensions(mm) |
||
|
Inner diameter(ID) |
Wall thickness(T) |
Inner diameter(id) |
Wall thickness(t) |
||
|
EV1200702X08B0 |
Φ12 |
12.5±0.4 |
0.7±0.17 |
≤6.0 |
1.5±0.25 |
|
EV1400702X08B0 |
Φ14 |
14.5±0.4 |
0.7±0.17 |
≤7.0 |
1.5±0.25 |
|
EV1500702X08B0 |
Φ15 |
15.5±0.4 |
0.7±0.17 |
≤7.5 |
1.5±0.25 |
|
EV1600702X08B0 |
Φ16 |
16.5±0.4 |
0.7±0.17 |
≤8.0 |
1.5±0.25 |
|
EV1800702X08B0 |
Φ18 |
19.0±0.5 |
0.7±0.17 |
≤9.0 |
1.5±0.25 |
|
EV2000702X08B0 |
Φ20 |
21.5±1.0 |
0.7±0.17 |
≤10.0 |
1.5±0.25 |
|
EV2200702X08B0 |
Φ22 |
23.5±1.0 |
0.7±0.17 |
≤11.0 |
1.5±0.25 |
|
EV2500702X08B0 |
Φ25 |
26.0±1.0 |
0.7±0.17 |
≤12.5 |
1.5±0.25 |
|
EV2800702X08B0 |
Φ28 |
29.0±1.0 |
0.7±0.17 |
≤14.5 |
1.5±0.25 |
|
EV3000702X08B0 |
Φ30 |
31.0±1.5 |
0.7±0.17 |
≤15.0 |
1.5±0.25 |
|
EV3500702X08B0 |
Φ35 |
36.0±1.5 |
0.7±0.17 |
≤17.5 |
1.5±0.25 |
|
EV4000702X08B0 |
Φ40 |
41.0±1.5 |
0.7±0.17 |
≤20.0 |
1.5±0.25 |
|
EV4500702X08B0 |
Φ45 |
46.5±1.5 |
0.7±0.17 |
≤22.5 |
1.5±0.25 |
|
EV5000702X08B0 |
Φ50 |
51.0±1.5 |
0.7±0.17 |
≤25.0 |
1.5±0.25 |
| 150℃ 0.45 wall thickness Product specifications | |||||
|
No. |
Specification |
Sides before shrink(mm) |
Fully Recoverd Dimensions(mm) |
||
|
Inner diameter(ID) |
Wall thickness(T) |
Inner diameter(id) |
Wall thickness(t) |
||
|
EV2000452X08D0 |
Φ20 |
21.0±1.0 |
0.45±0.12 |
≤6.7 |
1.5±0.25 |
|
EV2500452X08D0 |
Φ25 |
26.0±1.0 |
0.45±0.12 |
≤8.4 |
1.5±0.25 |
|
EV2800452X08D0 |
Φ28 |
29.0±1.0 |
0.45±0.12 |
≤9.4 |
1.5±0.25 |
|
EV3000452X08D0 |
Φ30 |
31.0±1.5 |
0.45±0.12 |
≤10.0 |
1.5±0.25 |
|
EV3500452X08D0 |
Φ35 |
36.0±1.5 |
0.45±0.12 |
≤11.7 |
1.5±0.25 |
|
EV4000452X08D0 |
Φ40 |
41.0±1.5 |
0.45±0.12 |
≤13.4 |
1.5±0.25 |
|
EV4500452X08D0 |
Φ45 |
46.0±1.5 |
0.45±0.12 |
≤15.0 |
1.5±0.25 |
|
EV5000452X08D0 |
Φ50 |
51.0±1.5 |
0.45±0.12 |
≤16.7 |
1.5±0.25 |
| 150℃ 0.5 wall thickness Product specifications | |||||
|
No. |
Specification |
Sides before shrink(mm) |
Fully Recoverd Dimensions(mm) |
||
|
Inner diameter(ID) |
Wall thickness(T) |
Inner diameter(id) |
Wall thickness(t) |
||
|
EV1200502X08D0 |
Φ12 |
12.5±0.4 |
0.5±0.13 |
≤6.0 |
1.0±0.25 |
|
EV1400502X08D0 |
Φ14 |
14.5±0.4 |
0.5±0.13 |
≤7.0 |
1.0±0.25 |
|
EV1500502X08D0 |
Φ15 |
15.5±0.4 |
0.5±0.13 |
≤7.5 |
1.0±0.25 |
|
EV1600502X08D0 |
Φ16 |
16.5±0.4 |
0.5±0.13 |
≤8.0 |
1.0±0.25 |
|
EV1800502X08D0 |
Φ18 |
19.0±0.5 |
0.5±0.13 |
≤9.0 |
1.0±0.25 |
|
EV2000502X08D0 |
Φ20 |
21.5±1.0 |
0.5±0.13 |
≤10.0 |
1.0±0.25 |
|
EV2200502X08D0 |
Φ22 |
23.5±1.0 |
0.5±0.13 |
≤11.0 |
1.0±0.25 |
|
EV2500502X08D0 |
Φ25 |
26.0±1.0 |
0.5±0.13 |
≤12.5 |
1.0±0.25 |
|
EV2800502X08D0 |
Φ28 |
29.0±1.0 |
0.5±0.13 |
≤14.5 |
1.0±0.25 |
|
EV3000502X08D0 |
Φ30 |
31.0±1.5 |
0.5±0.13 |
≤15.0 |
1.0±0.25 |
|
EV3500502X08D0 |
Φ35 |
36.0±1.5 |
0.5±0.13 |
≤17.5 |
1.0±0.25 |
|
EV4000502X08D0 |
Φ40 |
41.0±1.5 |
0.5±0.13 |
≤20.0 |
1.0±0.25 |
|
EV4500502X08D0 |
Φ45 |
46.5±1.5 |
0.5±0.13 |
≤22.5 |
1.0±0.25 |
|
EV5000502X08D0 |
Φ50 |
51.0±1.5 |
0.5±0.13 |
≤25.0 |
1.0±0.25 |
| 150℃ 0.7 wall thickness Product specifications | |||||
|
No. |
Specification |
Sides before shrink(mm) |
Fully Recoverd Dimensions(mm) |
||
|
Inner diameter(ID) |
Wall thickness(T) |
Inner diameter(id) |
Wall thickness(t) |
||
|
EV1200702X08D0 |
Φ12 |
12.5±0.4 |
0.7±0.17 |
≤6.0 |
1.5±0.25 |
|
EV1400702X08D0 |
Φ14 |
14.5±0.4 |
0.7±0.17 |
≤7.0 |
1.5±0.25 |
|
EV1500702X08D0 |
Φ15 |
15.5±0.4 |
0.7±0.17 |
≤7.5 |
1.5±0.25 |
|
EV1600702X08D0 |
Φ16 |
16.5±0.4 |
0.7±0.17 |
≤8.0 |
1.5±0.25 |
|
EV1800702X08D0 |
Φ18 |
19.0±0.5 |
0.7±0.17 |
≤9.0 |
1.5±0.25 |
|
EV2000702X08D0 |
Φ20 |
21.5±1.0 |
0.7±0.17 |
≤10.0 |
1.5±0.25 |
|
EV2200702X08D0 |
Φ22 |
23.5±1.0 |
0.7±0.17 |
≤11.0 |
1.5±0.25 |
|
EV2500702X08D0 |
Φ25 |
26.0±1.0 |
0.7±0.17 |
≤12.5 |
1.5±0.25 |
|
EV2800702X08D0 |
Φ28 |
29.0±1.0 |
0.7±0.17 |
≤14.5 |
1.5±0.25 |
|
EV3000702X08D0 |
Φ30 |
31.0±1.5 |
0.7±0.17 |
≤15.0 |
1.5±0.25 |
|
EV3500702X08D0 |
Φ35 |
36.0±1.5 |
0.7±0.17 |
≤17.5 |
1.5±0.25 |
|
EV4000702X08D0 |
Φ40 |
41.0±1.5 |
0.7±0.17 |
≤20.0 |
1.5±0.25 |
|
EV4500702X08D0 |
Φ45 |
46.5±1.5 |
0.7±0.17 |
≤22.5 |
1.5±0.25 |
|
EV5000702X08D0 |
Φ50 |
51.0±1.5 |
0.7±0.17 |
≤25.0 |
1.5±0.25 |
