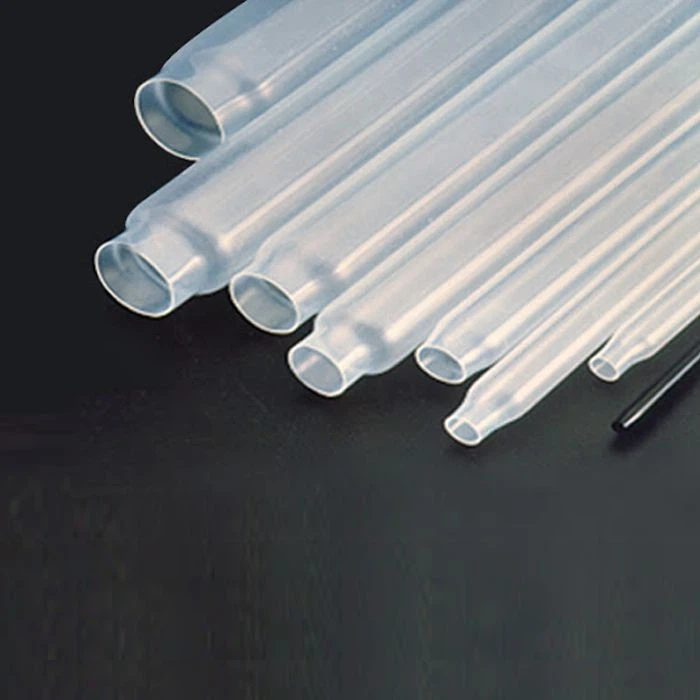

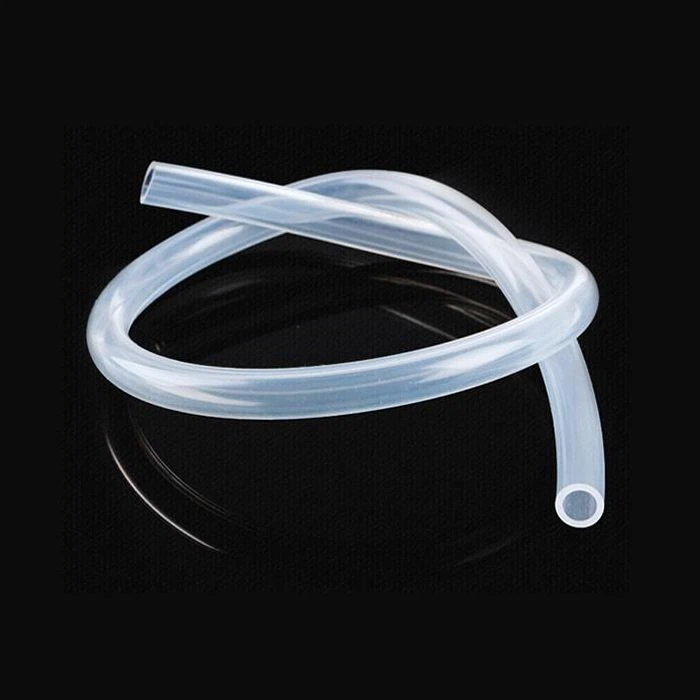

PVDF Heat Shrink Tube

MODEL: 150℃ 175℃ High temperature PVDF Heat Shrink Tubing
Material: radiation cross-linked modified fluoropolymer
Shrink ratio: 2:1PVDF heat shrink tube
Features:Temperature,transparent,flame retardant, thin-walledSoft(150“C)/semi-rigid (175 °C)

Send Inquiry

MODEL	150℃ 175℃ High temperature PVDF Heat Shrink Tubing
Material	radiation cross-linked modified fluoropolymer
Shrink ratio	2:1PVDF heat shrink tube
Features	Temperature,transparent,flame retardant, thin-walledSoft(150"C)/semi-rigid (175 °C)
PVDF heat shrink tubeShrinkage temperature	150°C/175°CBy150'C600V VW-1 rating UL certification
TransparentApplication	The product has good heat resistance, wear resistance, resistance to mechanical damage andchemical resistance to corrosion, can be applied to those who may be the presence of corrosiveair, thermal cycling or mechanical stress adverse environmental effects; good flame retardantproperties, and is also used in automobiles,aviation,marine,electronic equipments and otherwiring; addition, good transparency and is also suitable for encapsulatingelectronic components separately element area.

No.	Specification	Inner diameter before shrinkage Minimum value D(mm)	Inner diameter after contraction Maximum value d(mm)	Wall thickness after shrinkage W(mm)
VR012P2X01	Φ1.2	1.2	0.6	0.25±0.05
VR016P2X01	Φ1.6	1.6	0.8	0.25±0.05
VR024P2X01	Φ2.4	2.4	1.2	0.25±0.05
VR032P2X01	Φ3.2	3.2	1.6	0.25±0.05
VR048P2X01	Φ4.8	4.8	2.4	0.25±0.05
VR064P2X01	Φ6.4	6.4	3.2	0.3±0.08
VR095P2X01	Φ9.5	9.5	4.8	0.3±0.08
VR127P2X01	Φ12.7	12.7	6.4	0.3±0.08
VR191P2X01	Φ19.1	19.1	9.5	0.43±0.08
VR254P2X01	Φ25.4	25.4	12.7	0.48±0.08
VR381P2X01	Φ38.1	38.1	19.1	0.51±0.08
VR508P2X01	Φ50.8	50.8	25.4	0.58±0.08
